Hi Everybody, does anyone have a parts list for the EOS 5D Mark IV please?
I need the part numbers for the hot shoe bracket, retaining screws and the spring plate insert.
Although the hot shoe looks identical to that on the 5D MkIII (Canon Part No CB3-4683), I can't find any references confirming compatibility or otherwise.
Many Thanks, Nigel
Is this a good question?
Rep: 536k
11
408
1.5k
Chances are that it will be different to the MkIV as it is different to the Mk11 part number which is CB3-3507-000 000.
If you can't get a definitive answer here's the Mk IV parts catalogue. Unfortunately you will have to purchase it.
Searching for the Canon reference number for the catalogue as shown on the image in the link i.e. C12-6601 produced no other results. The parts catalogue ref. number is different for each model e.g. MkIII = C12-6321, MkII = C12 6201.
Was this answer helpful?
Thanks jayeff, very helpful.
Rep: 5.5k
40
9
55

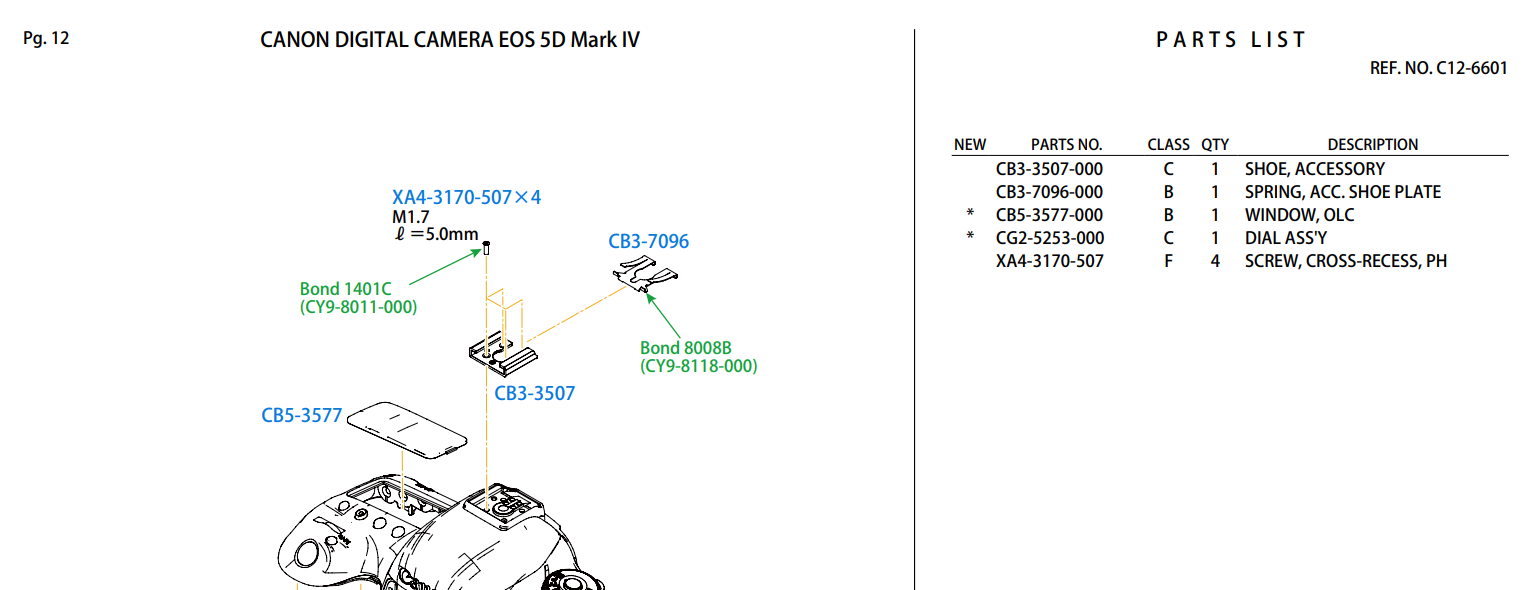

Here are all the part numbers you need:
I also went ahead and added the parts catalog to the device page.
Was this answer helpful?
